Auto AC Conditioning Compressor For 93310443 93354502 93381741 93399315 Opel Astra Corsa Classic Chevrolet Celta Prisma Corsa
| NASIDE NO. | DS50001 |
| OEM | 93310443 /93354502 /93381741/ 93399315 |
| Clutch Diameter | 110MM |
| Grooves | 6PK |
| Material | Precision aluminum |
| Size | Standard size |
Core Parameters and Compatible Vehicle Models
Model and Specification
CVC Series (Ocean-CO0131) : Compatible with Opel Astra H (Astra H 1.6 16V, 2004-2014), Meriva A (Meriva A 1.6 16V, 2003-2010), etc. The part numbers include 13124750, 13286085, etc. The Compressor type is AC Compressor and supports refrigeration function. Voltage: 12V.
Model 6V12 (Ocean-CO0124B) : Applicable to Opel Corsa C (1.2/1.416V, 2000-2006), Meriva A (1.416V, 2003-2010), part numbers 24461719, 6854020, etc. The pulley groove number is 5PK, the clutch diameter is 130mm, and the compressor model is 6V12.
Model PXV16 (Ocean-CO0296) : Compatible with Opel Astra G (2.216V, 1998-2009), Vectra B (2.216V, 1995-2002), part numbers 1854113, 6854025, etc. Applicable to Karl/Spark (2015-2019) : Model SC08C, part numbers 095524150, 42472965, clutch diameter 105mm, groove 5PK, voltage 12V, suitable for Chevrolet and Opel small cars.
General parameters
Voltage: All are 12V, compatible with the low-voltage system of automobiles.
Function: Compress the refrigerant (such as R-134a), and control the start and stop through the electromagnetic clutch. Some models support fixed displacement or variable displacement adjustment (for example, the fixed displacement compressor controls the clutch disengagement through the evaporator temperature signal).
Installation requirements: It is necessary to match the number of pulley grooves (such as 4PK, 5PK), the diameter of the clutch and the torque of the fixing bolts (usually 9.8-25N·m). Before installation, the sealing of the pipeline should be checked and vacuumed.
|
|

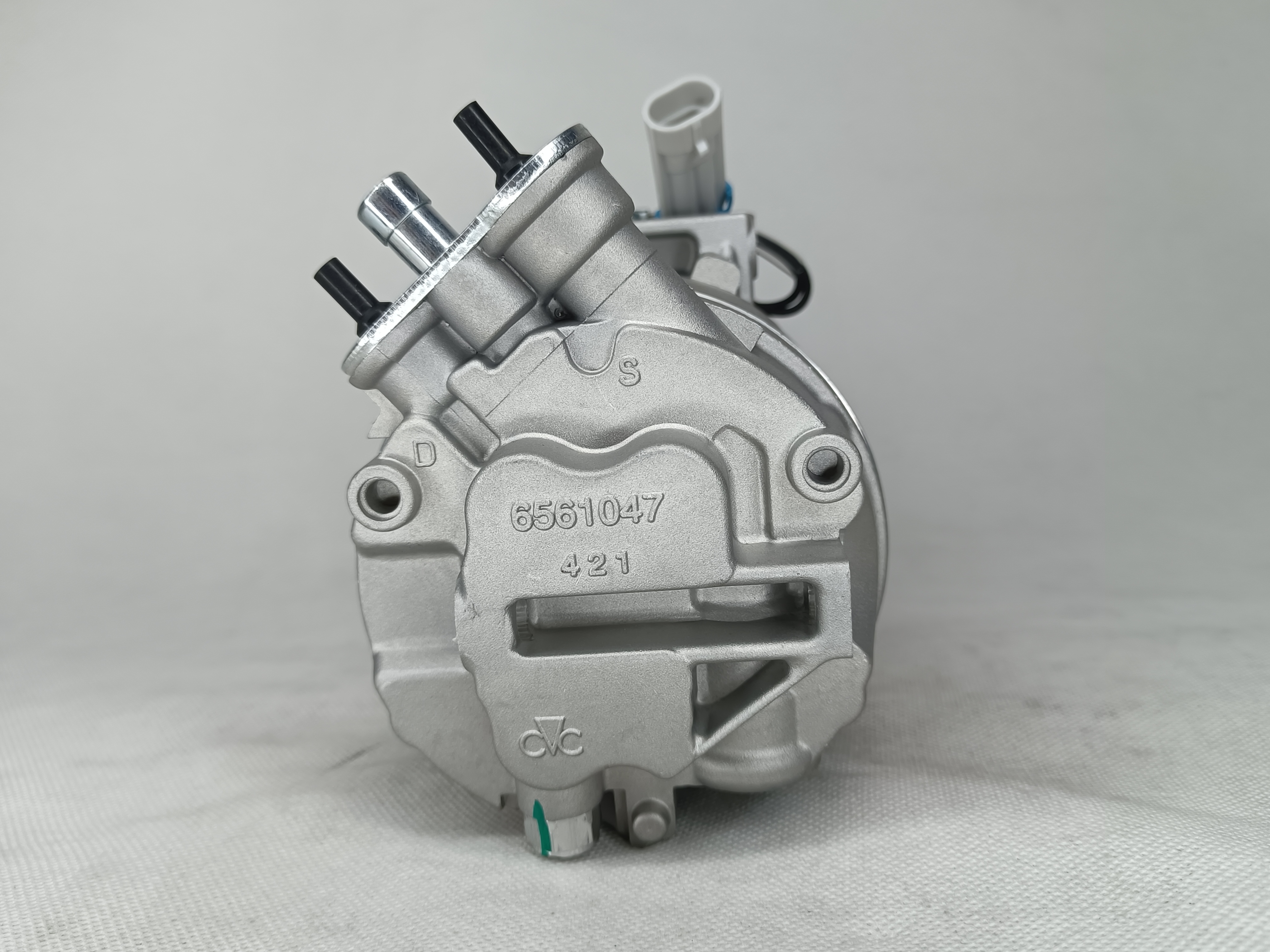

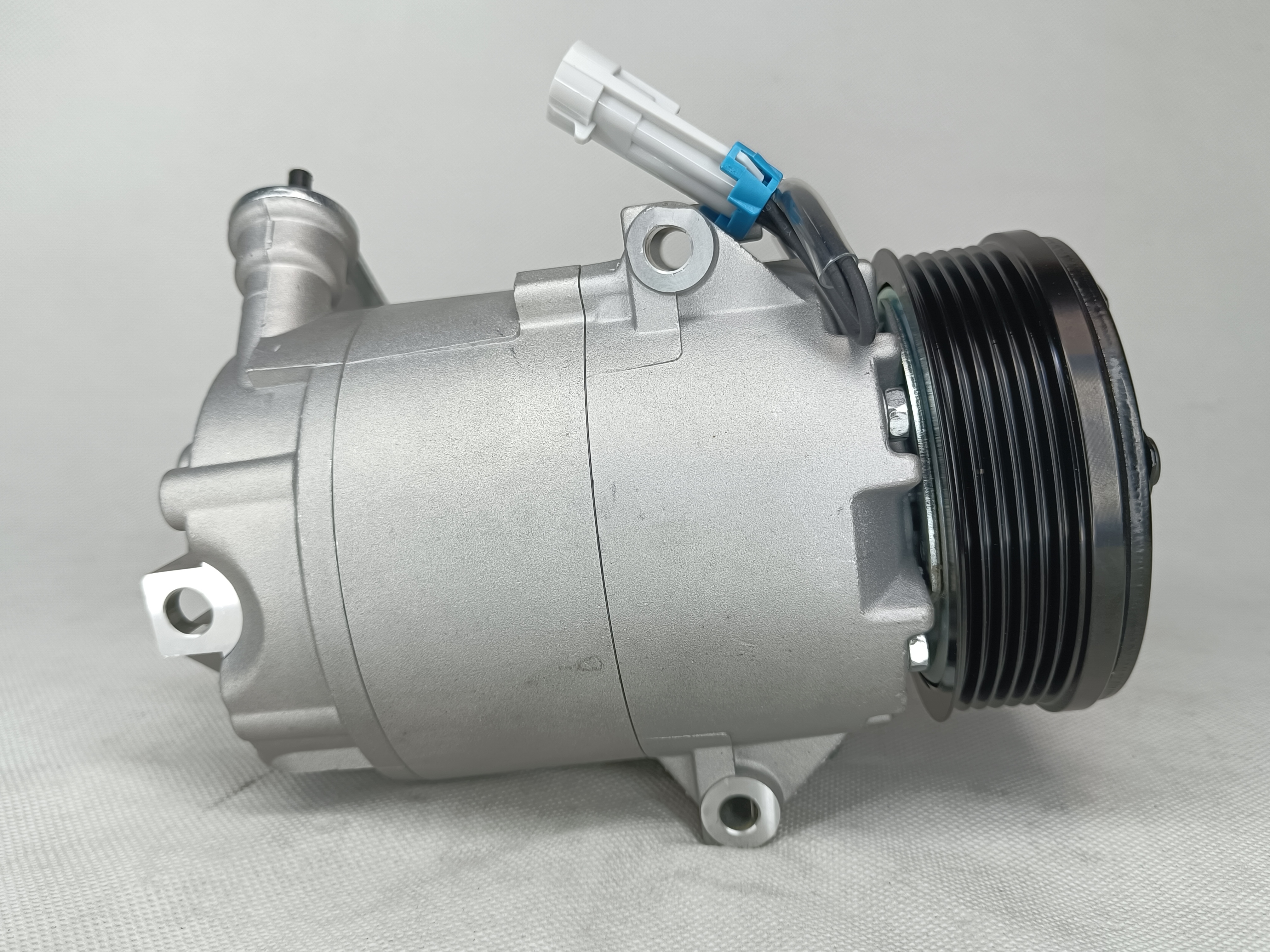

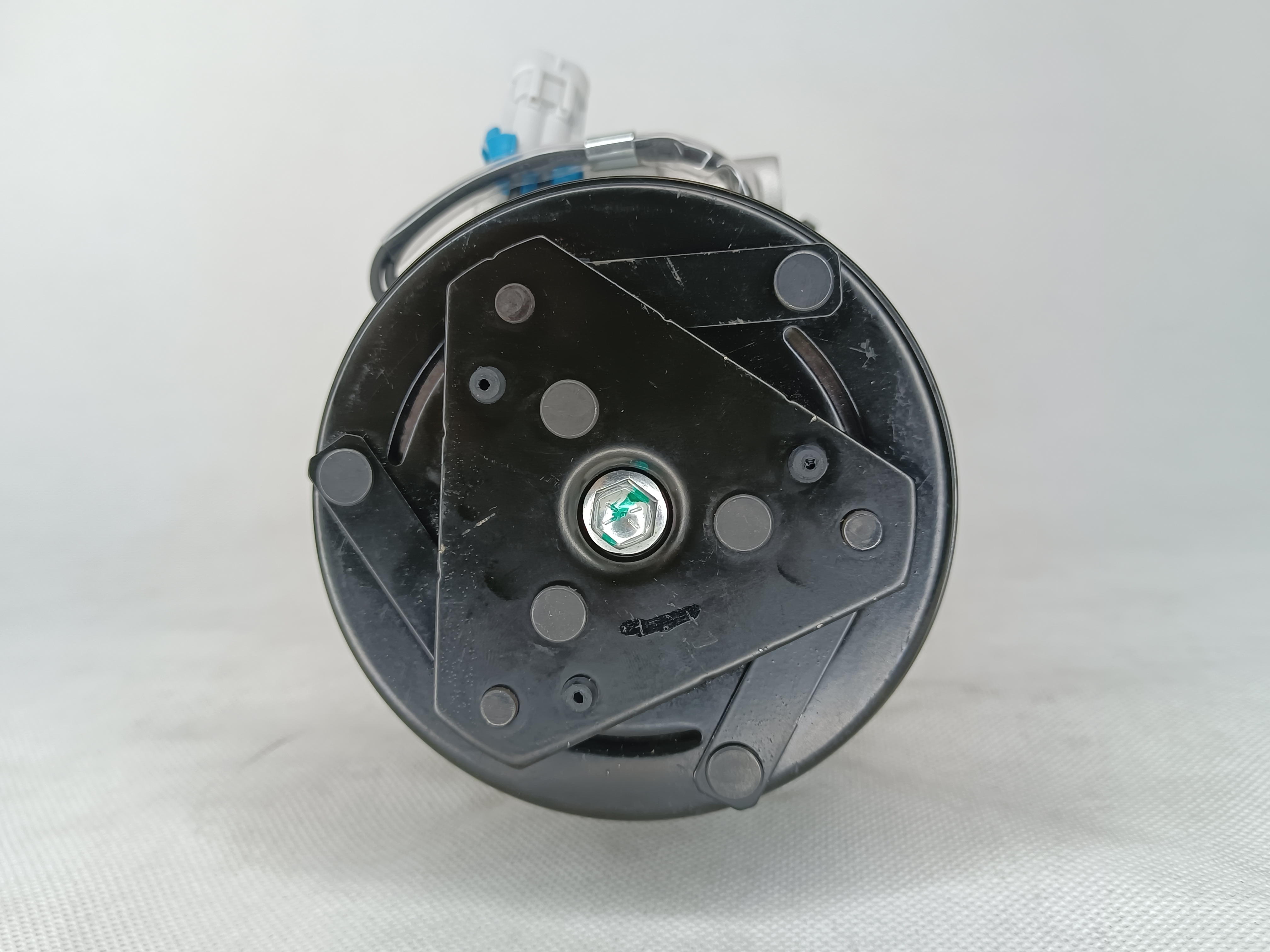

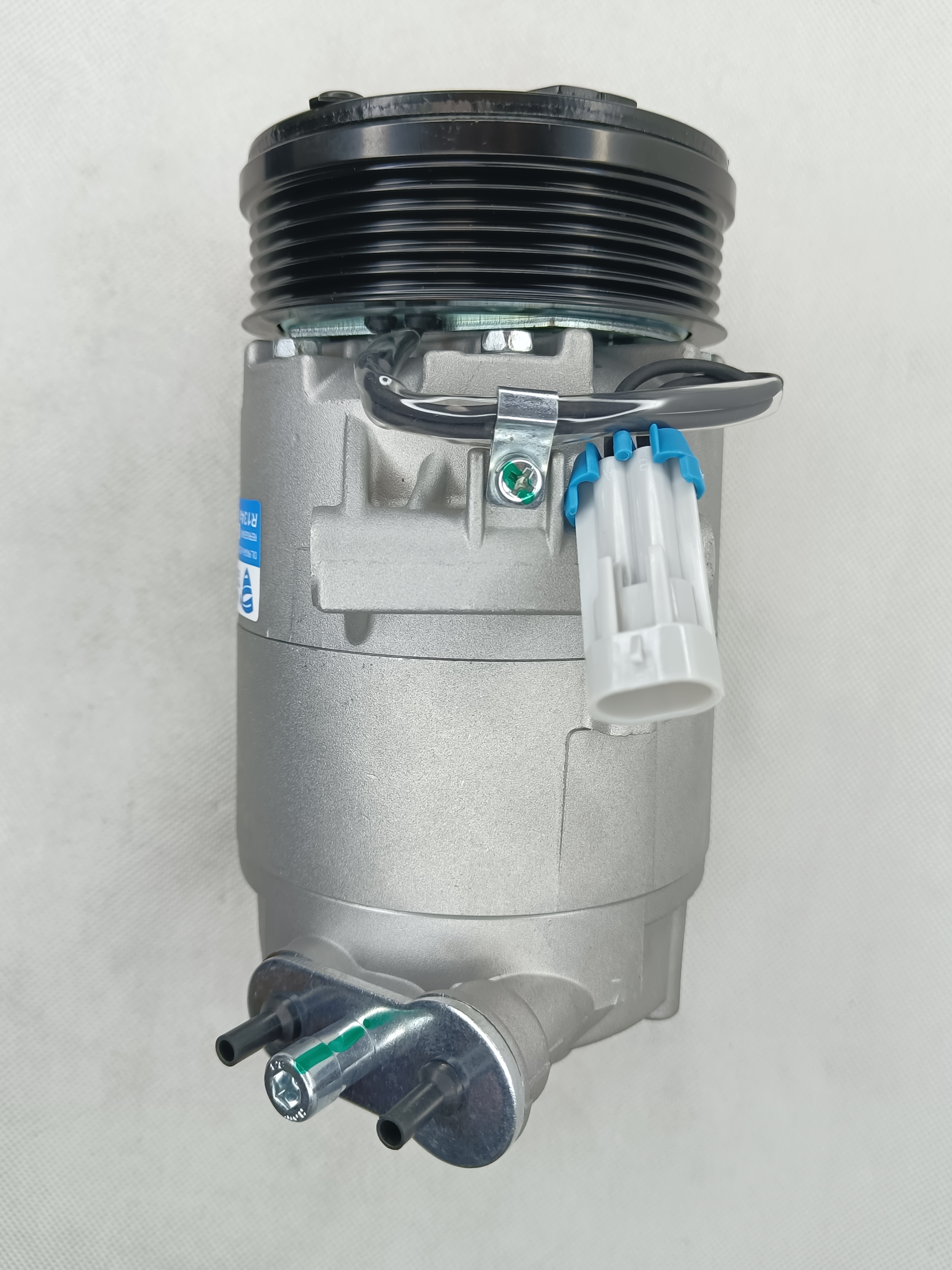

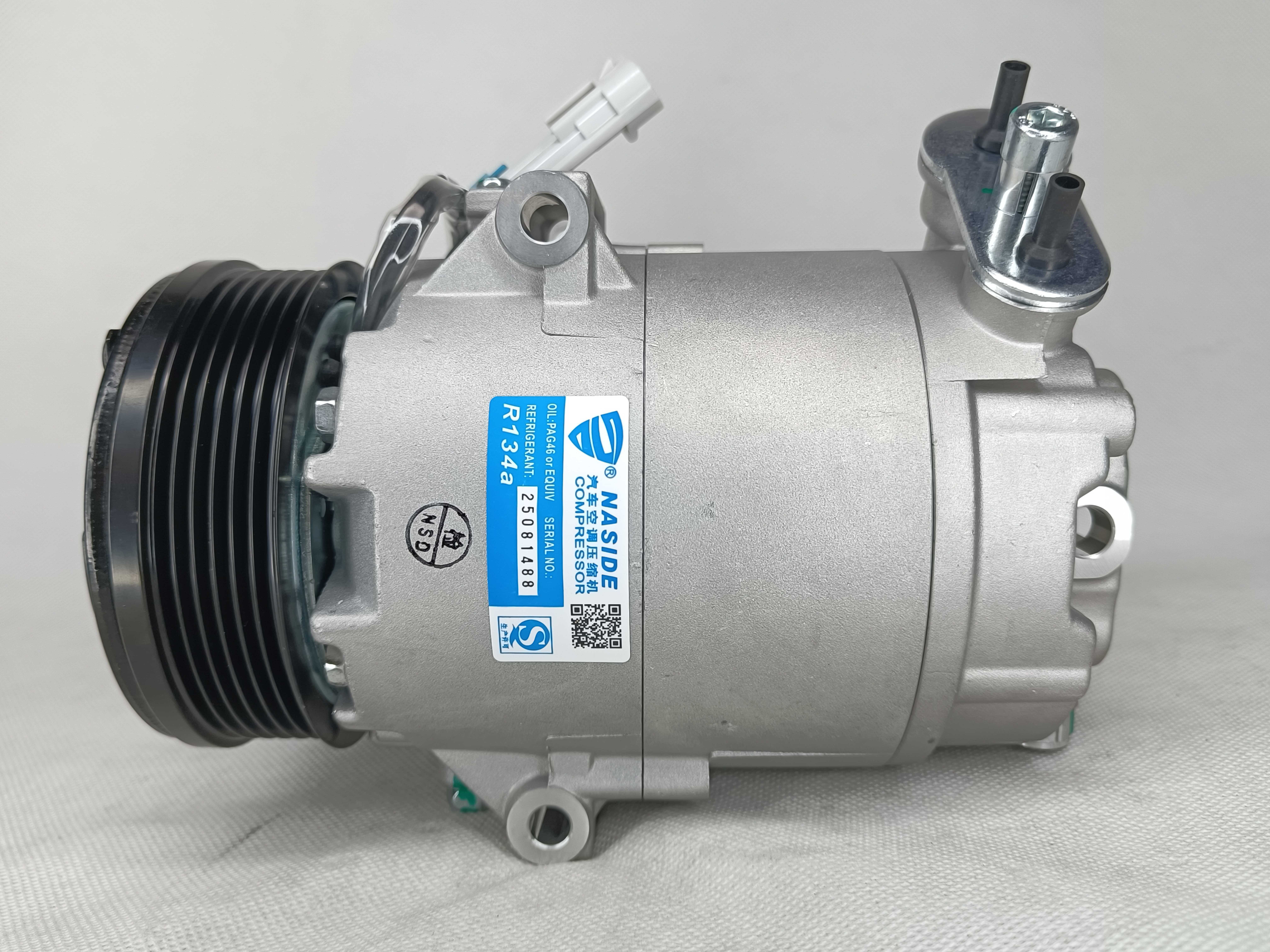

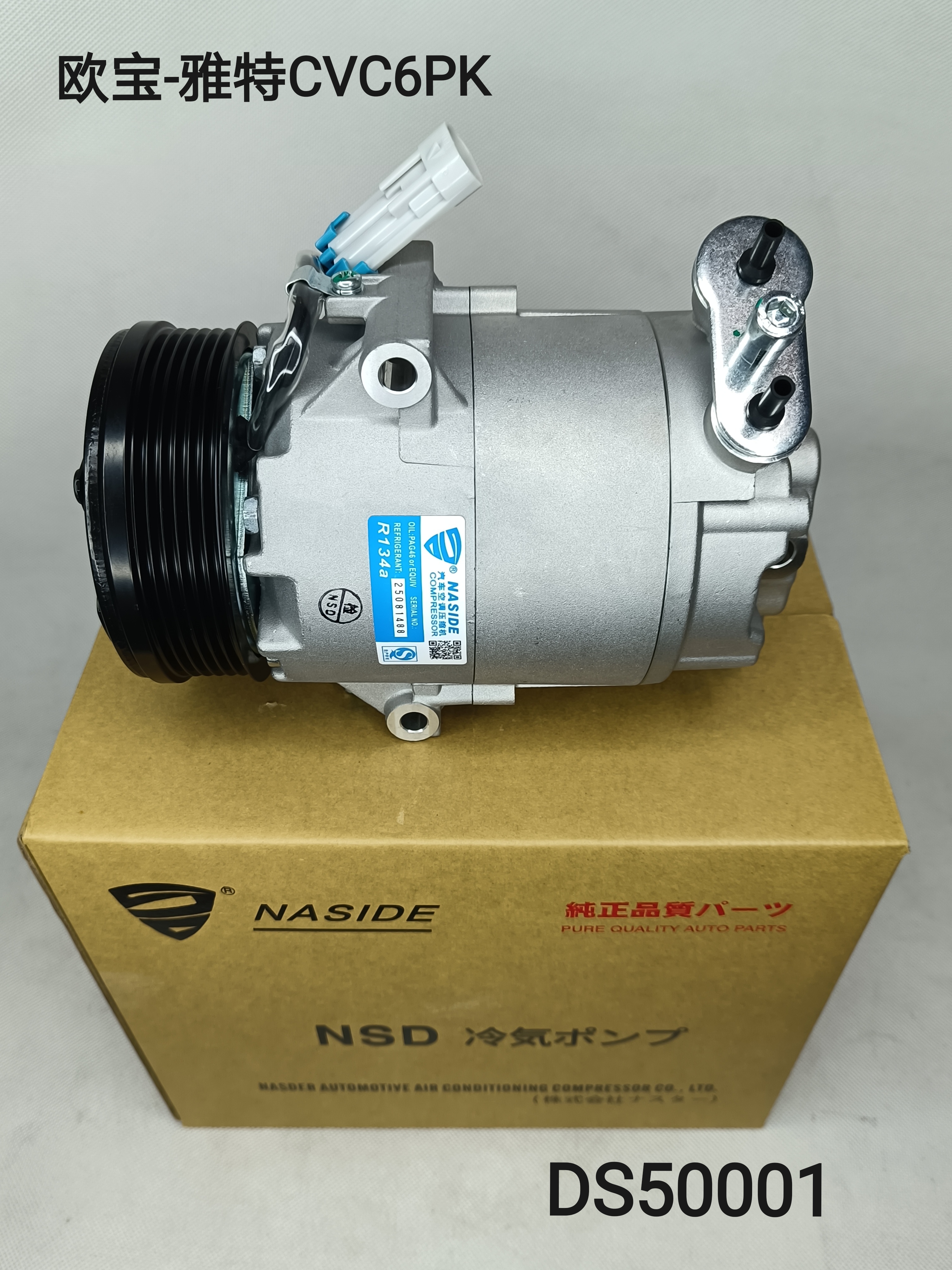

Auto AC Conditioning Compressor For 93310443 93354502 93381741 93399315 Opel Astra Corsa Classic Chevrolet Celta Prisma Corsa Images
|
